Easy Installation

INSTALLATION GUIDE FOR IN-GROUND TRAMPOLINES

When you purchase a Capital Play in-ground trampoline from The Jump Shack, you will get a quality, user friendly product that offers easy assembly and installation from an in-ground trampoline company in Phoenix.

If the task is too much to undertake yourself, contact us for a free estimate to install your in-ground trampoline.
For more thorough instructions for an in ground trampoline instructions, download the full PDF here:

Round Trampoline PDF
Regular Trampoline PDF

STEP 1. DIG THE HOLE

Mark the hole before you dig it. Draw a line in the ground as your guide for digging and make sure the hole is a few inches wider than the trampoline itself.

Check the chart below to find the size hole you should dig that is appropriate for the dimensions of your Capital Play in-ground trampoline.

Installation Tip:

Having a margin for error is important for even, flush placement of your in-ground trampoline. Dig an extra few inches around the diameter of the hole which will then be back-filled later on.

Hole Dimensions for round in-ground trampoline

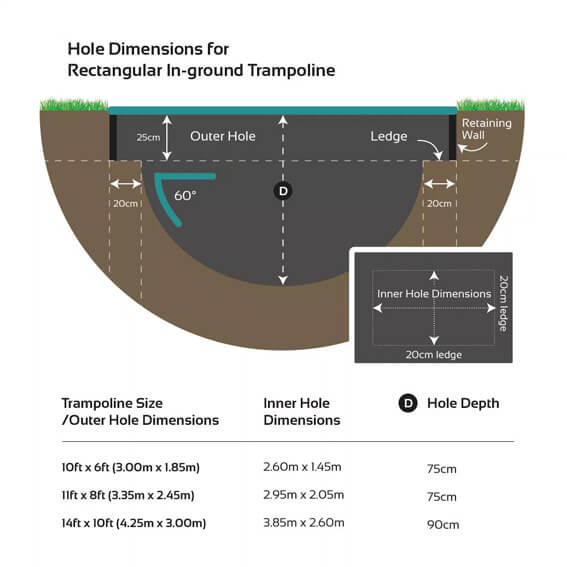

Hole Dimensions for rectangular in-ground trampoline

STEP 2. CONSTRUCT THE TRAMPOLINE FRAME

Put the trampoline together by first assembling the top and bottom sections of the frame, followed by the mat and springs. Then secure the frame to the retaining wall.

Installation Tip:

Attach springs at 3, 9, 12, and 6 o’clock positions first. This makes it easier to attach the following springs and ensures even tension.

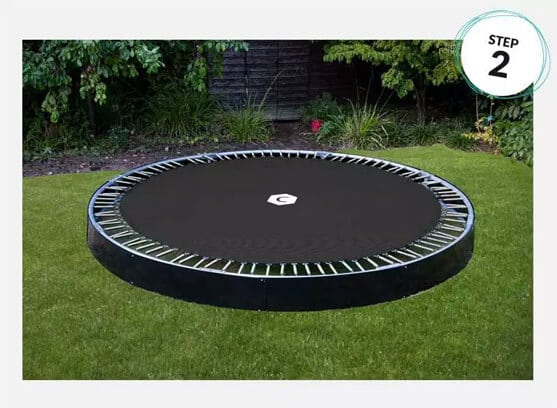

Step 2 Trampoline

STEP 3. PLACE TRAMPOLINE IN HOLE

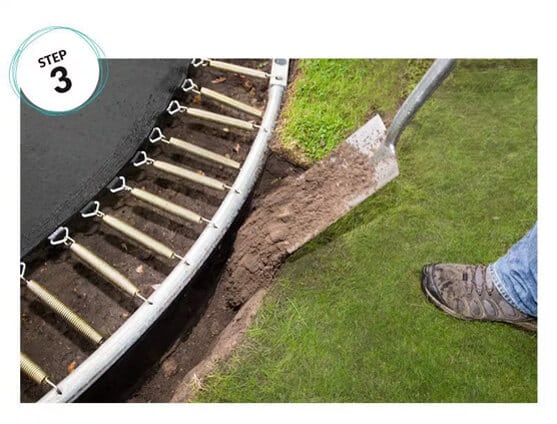

Step 3 Site Trampoline into hole

When placing the trampoline onto the ledge, ensure that the in-ground trampoline frame is the correct height to make it flush with the ground, then proceed with back-filling the gap.

Installation Tip:

Compact the soil easily with the handle of your shovel. Pack it down tight to avoid issues in the future.

STEP 4. SECURE VENTED PADS TO THE TRAMPOLINE

Once all the measurements, digging, and hard work is complete, attach the TDU vented pads to the trampoline frame, and you can start your fun on your Capital Play in-ground trampoline from The Jump Shack, a local in-ground trampoline installer!

Installation Tip:

Jump and enjoy!

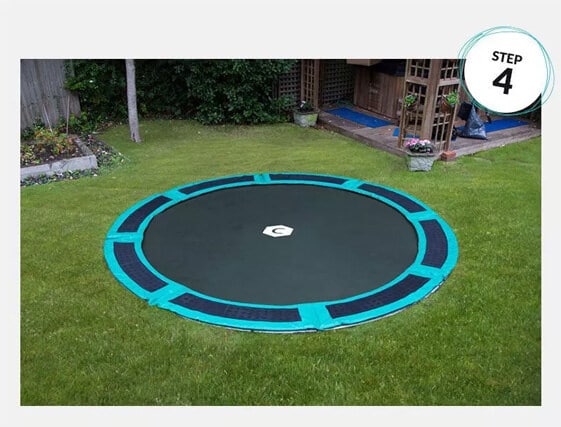

Step 4 Attach the vented pads
